Platinum Pro II

STANDING SEAM PANEL SYSTEM

Warranty Included with Purchase

Additional Warranty Available

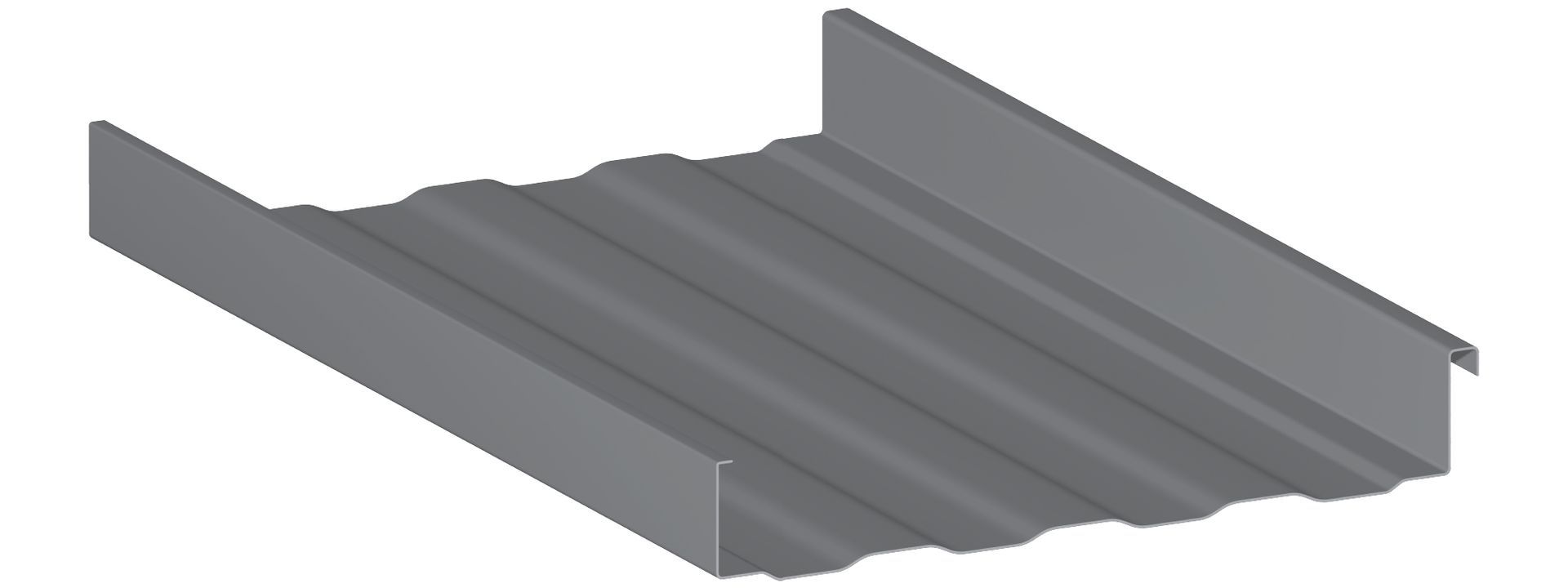

Platinum Metals | Platinum Pro II is a double-lock architectural/structural standing seam system that provides a classical look that is supportive of more rigorous wind-load designs required for many architectural projects. The 2” seam height enables the panel to be structurally sound yet architecturally appealing, and its heavy-gauge concealed fasteners allows for maximum thermal movement.

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Features

  • Gauge Options: 26 / 24 / 22
  • 40 Year Limited Lifetime Warranty
  • Minimum length of 36”
  • Panel widths 10.75”, 14.75”, 18.75”, custom
  • Minimum slope requirement 1:12
  • Watertight side lap
  • May be applied over solid or open framing

Our 40 Year Limited Lifetime Warranty is included with the purchase of this panel.

Available Product Options

  • Weather Tight Warranty
  • Tapered panels
  • Available in steel and aluminum

Our Weather Tight Warranty can be purchased & applied to the Platinum Pro II product.

Resources

Standard Colors

Frost Colors

Matte Colors

Technical Information

  • General Use & Method of Application

    Platinum Metals | Platinum Pro II panels must be installed in a sequential pattern. Application of a Platinum Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.

    • Install in accordance with industry-recognized sheet metal practices.
    • Cut, form, and fasten using conventional hand or power tools.
    • For best results cutting tool edges should be kept sharp, clean, properly dressed, and closely aligned.
    • Fabrication and erection can be accomplished with strippable plastic film in place. Film should be removed from areas of concealed or joined pieces.

  • Storage

    Platinum Metals | Platinum Pro II metal panels should be stored in a well-ventilated, dry place where no moisture can contact them. Moisture (from rain, snow, condensation, etc.) trapped between layers of material may cause water stains or white rust, which can affect the service life of the material and will detract from its appearance. If outdoor storage cannot be avoided, protect the panels with a ventilated canvas or waterproof paper cover. Do not use plastic, which can cause condensation. Keep the material off the ground in an inclined position with an insulator such as wood. Protective film may degrade or become brittle with long-term exposure to direct sunlight.

  • Precautions

    • Protective film may degrade or become brittle with exposure to direct sunlight. Therefore, it must be removed immediately.
    • Product should not be used in areas of high abrasion or where it is subject to mechanical damage.
    • Product is pre-finished material; care must be exercised during fabrication and erection to avoid surface damage.
    • Platinum Metals recommends a minimum bend radius of 2T for .032 and .040 materials and a 3T bend radius for any material .050 or greater. Anything less than these minimum bend radii can cause crazing to the material.
    • Attention should be paid to good house-keeping practices.
    • Avoid dragging sheets over surfaces which may scratch or mar the finish.
    • For general sheet metal use in building applications.
    • Do not cut with power saws or abrasive blades.
