Ultra Pro Panel

EXPOSED-FASTENER PANEL SYSTEM

Warranty Included with Purchase

Additional Warranty Available

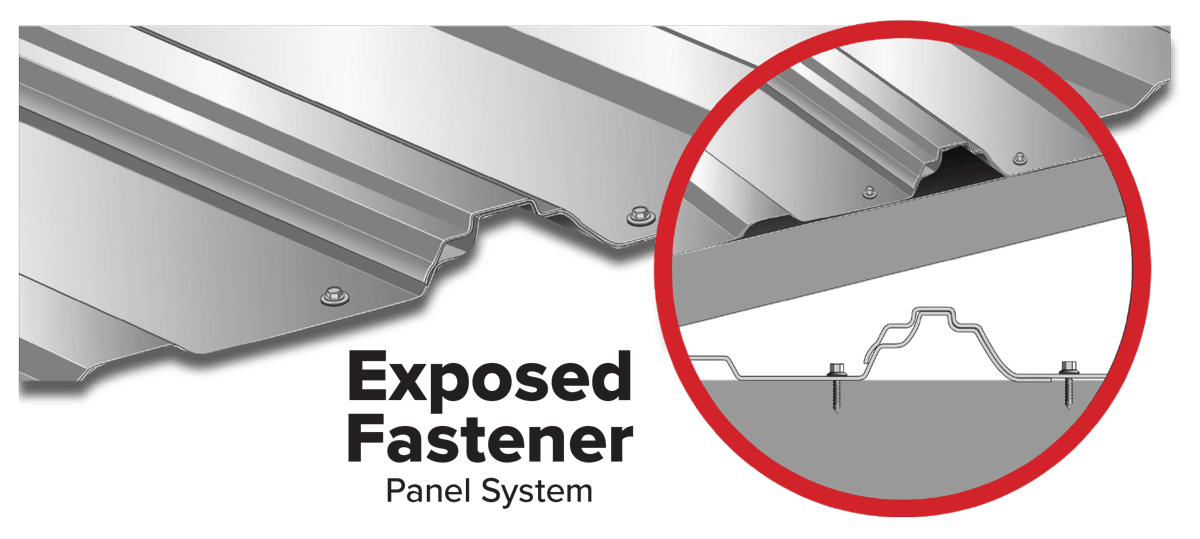

Platinum Metals | Ultra Pro Panel is 38” wide and provides 36” of coverage. The major ribs are 9” apart and approximately 3/4” high with two minor ribs in between that are a full 3/16” high. A stiffener is added to all the major ribs which, along with the superior thickness of the steel, makes this panel extremely strong. This not only adds considerable durability to your building, but also prevents rippling during the construction process.

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Features

  • Gauge Options: 28 / 26
  • 40 Year Limited Lifetime Warranty
  • Next Generation AZM® Rust Resistance
  • COLORBOND® Fade and Chalk Resistance
  • Panels made using exclusive Evercure®
  • Process with Heat Forming™
  • Industry Leading Packaging
  • Exposed fastener system
  • Panel width 36”
  • Minimum slope requirement 3:12
  • Board and batten look

Our 40 Year Limited Lifetime Warranty is included with the purchase of this panel.

Our Weather Tight Warranty can be purchased & applied to the Ultra Pro Panel.

Resources

Standard Colors

Frost Colors

Matte Colors

Technical Information

  • General Use & Method of Application

    • Install in accordance with industry-recognized sheet metal practices.
    • Cut, form, and fasten using conventional hand or power tools.
    • For best results cutting tool edges should be kept sharp, clean, properly dressed, and closely aligned.

  • Storage

    Platinum Metals | Ultra Pro Panels should be stored in a well-ventilated, dry place where no moisture can contact them. Moisture (from rain, snow, condensation, etc.) trapped between layers of material may cause water stains or white rust, which can affect the service life of the material and will detract from its appearance. If outdoor storage cannot be avoided, protect the panels with a ventilated canvas or waterproof paper cover. Do not use plastic, which can cause condensation. Keep the material off the ground in an inclined position with an insulator such as wood.

  • Precautions

    • Product should not be used in areas of high abrasion or where it is subject to mechanical damage.
    • Product is pre-finished material; care must be exercised during fabrication and erection to avoid surface damage.
    • Attention should be paid to good house-keeping practices.
    • Avoid dragging sheets over surfaces which may scratch or mar the finish.
    • For general sheet metal use in building applications.
    • Do not cut with power saws or abrasive blades.
