Pro Snow Rail

SNOW RETENTION SYSTEM

Platinum Metals proudly offers

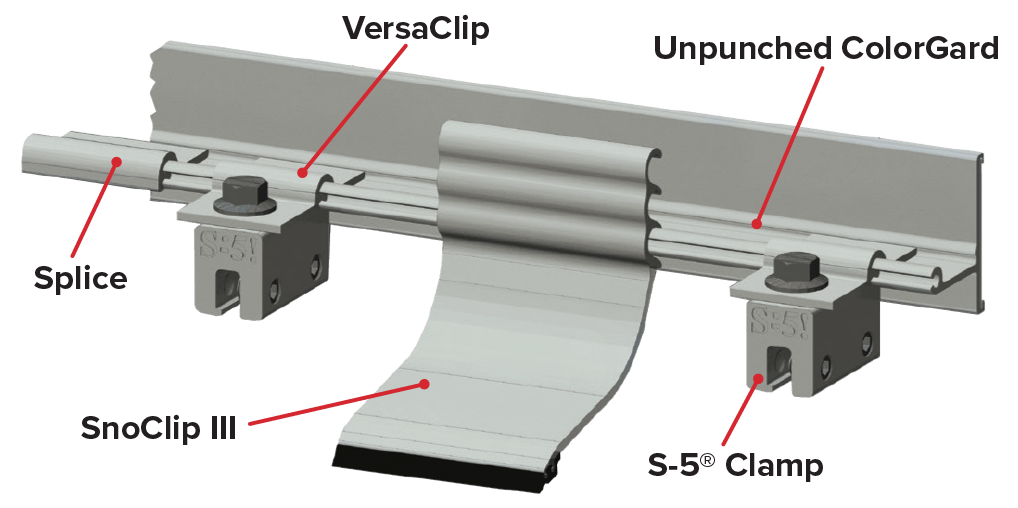

The S-5® | ColorGard® System

ColorGard® snow retention system is manufactured from mill finished, high quality aluminum. It comes in 8.00’ long sections, punched or unpunched configurations. Splices are included with ColorGard for adjacent sections. For use with S-5!® standard clamps, VersaBracket™, and CorruBracket™.

Slide title

Write your caption here

Button

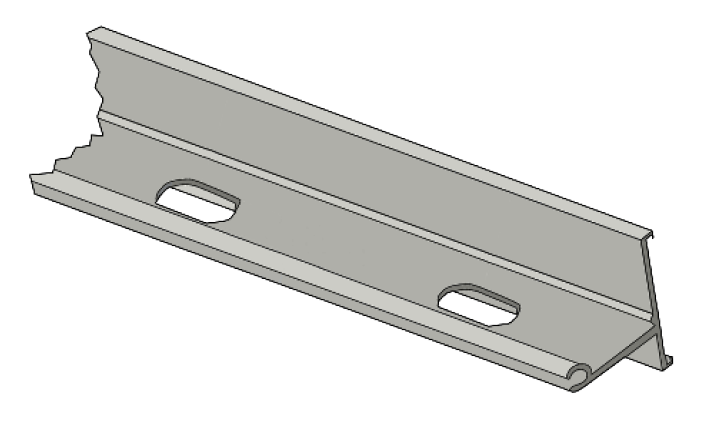

Punched Crossmembers

Punched ColorGard is slotted every 4.00” on center for seams that are spaced accordingly, i.e. divisible by 4.00”. The slotted configuration works well with S-5! clamps.

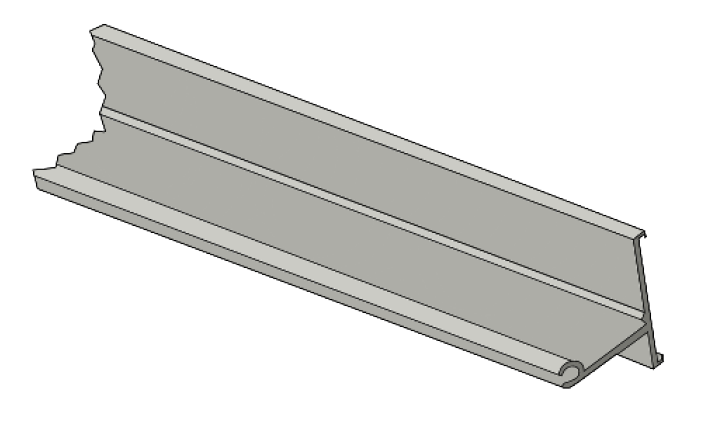

Unpunched Crossmembers

Unpunched ColorGard does not need holes, as the VersaClip accommodates any seam spacing. The right choice when the roof is laid out with untrue seam width or when the seam width is not divisible by 4.

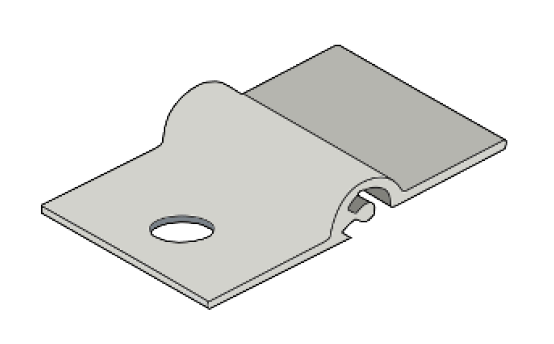

VersaClip

VersaClip makes installation easy as it simply slides on the ColorGard crossmember.

VersaClip is also handy when installing ColorGard askew, such as is required in the valleys between intersecting roof lines.

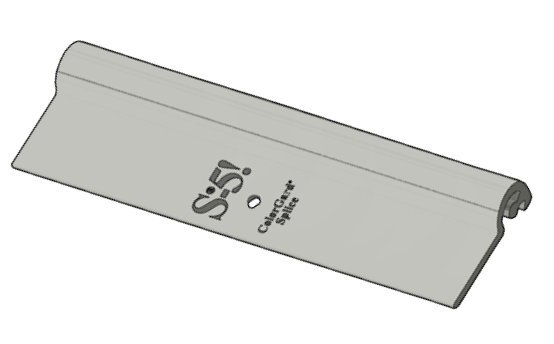

Splice

Use the Splice to join two pieces of ColorGard® together, ensuring continuous, unbroken protection. The dimple in the center is designed to provide a gap, allowing for expansion and contraction of the ColorGard sections.

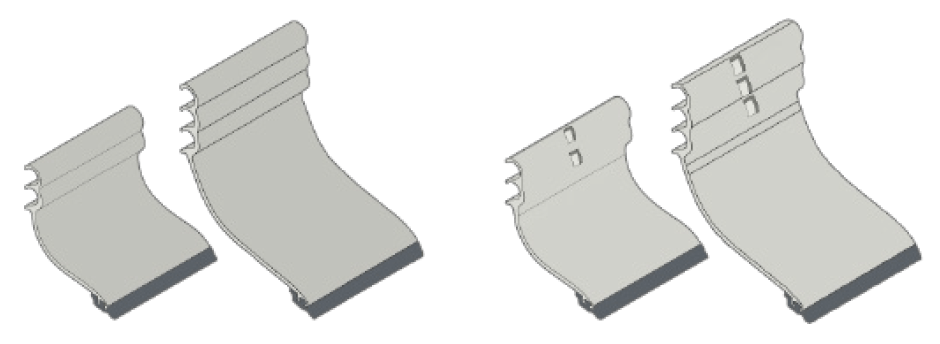

SnoClip &SnapClip
